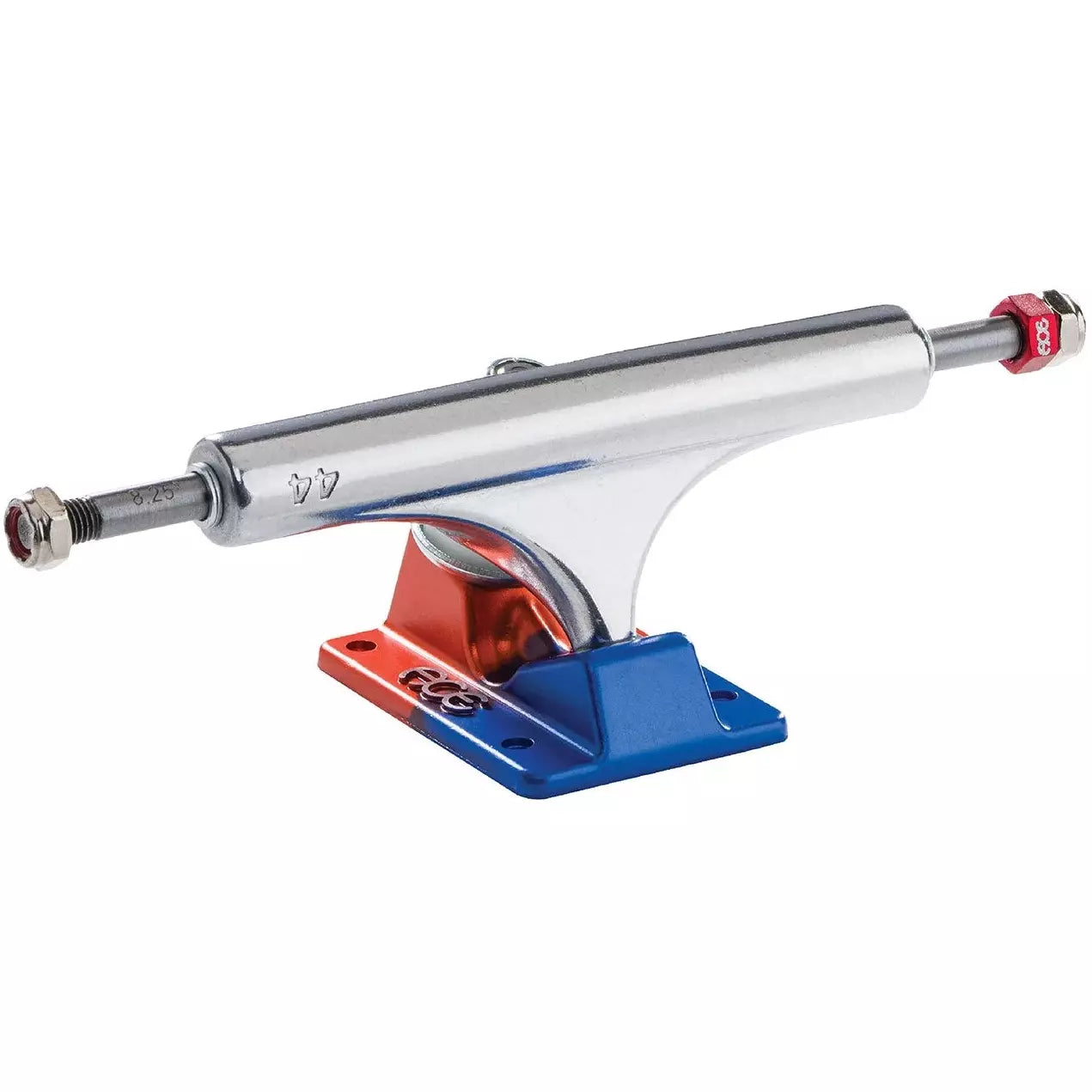

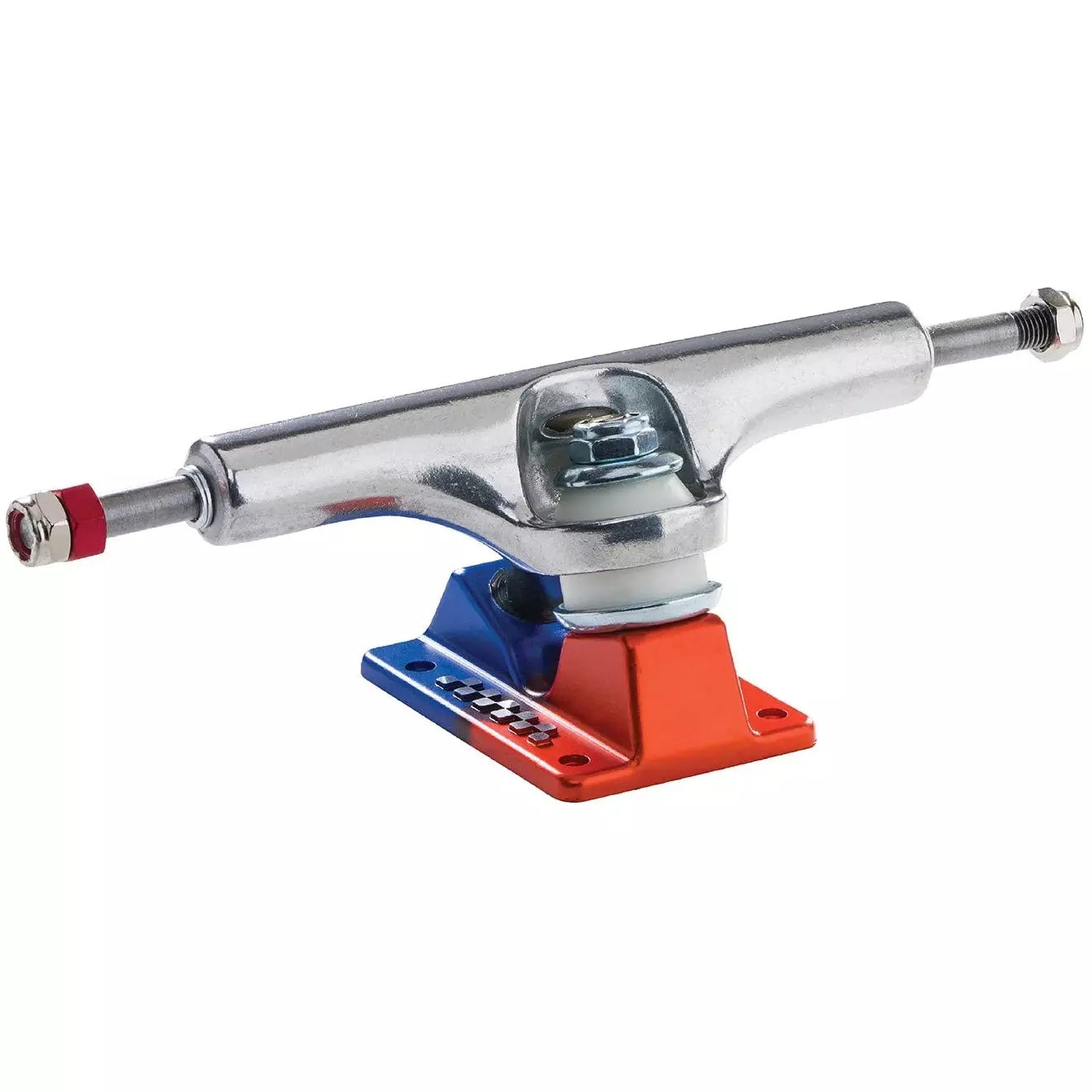

ACE AF1 44 Anodized Blue/Orange Skateboard Trucks

The ACE AF1 44 in anodized blue/orange. The AF1 keeps the classic ACE geometry – the smooth, deep turn ACE is known for – in ACE's strongest casting, which ACE rates at 70% more structural integrity in the aluminum than before.

Priced per truck. Add 2 to your cart for a full set – one front, one back.

Size and fit

• Size 44
• Axle width: 8.25"
• Hanger width: 5.6" (143mm)
• Fits decks 8.25"–8.5"
• Height: 2.1" (53mm)
• Weight: 387g per truck

Not sure it's the right size? Match the axle to your deck: the 44 is built for 8.25"–8.5" boards. See every size on the ACE trucks page, or browse skateboard decks.

Construction

• AA 356.2 aluminum alloy, cast with ACE's proprietary process
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel axles, oversized to eliminate bearing wobble
• Rethreading axle nuts (patent pending) – no more damaged axle ends
• Hand-poured 96a urethane pivot cups
• Machine-faced hanger ends for precise bearing contact
• Top bushing: 12mm tall, 91a
• Bottom bushing: 14mm tall, 86a

Trucks only. Add hardware, wheels and bearings to finish your setup.
